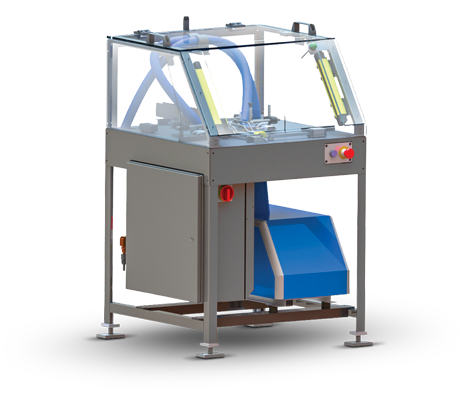

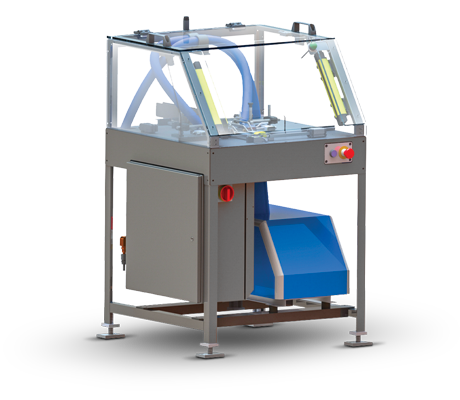

ARGO CARTONER

The Argo Cartoner is a compact carton sealer which glues two flaps simultaneously and can be adjusted for new sizes in just minutes. Its method of operation is:

1. Operator breaks the light curtain and places loaded carton into the machine with the inner flaps closed
2. Once operator removes hands and a box is detected the machine will begin its cycle
3. A cylinder will advance the box forward where a Nordson hot melt glue system will apply glue to the folded flaps
4. The outter major flaps are then closed and box rides into a short compression area
5. Completed cartons are discharged out the backside of the machine

• Nordson Glue Tank
• Safety Light Curtain
• Quick Changeover
• Minimal Change Parts
• Compact Footprint
• Reduced Carton Size Range
• Up to 30 cartons per minute (operator dependent)

Min .75” x .75” x 1.25 ” (19.05 x 19.05 x 31.75)

Max 4.5″ x 2” x 6” (114.3 x 50.8 x 152.4)
